| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-30TPH |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 20-25working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >100sets/month |
| RO Membrane: | USA DOW | Production Capacity: | 30TPH |
|---|---|---|---|
| Recovery Rate: | 50% - 75% | Electrical Power: | 220V / 380V 3Phase Or Others |
| Membrane Housing: | FRP/ Stainless Steel | Control Valve: | Automatic/ Manual |
| Pipe Fitting: | U-PVC | Pretreatment Filter: | Sand / Carbon / Security / Softener |
| Parts Materials: | Quartz Sand / Activated Carbon / Cartridges Filter / Resin | Application: | Pure / Drinking Water |
| Highlight: | activated carbon filter cartridge,high pressure pump |
||

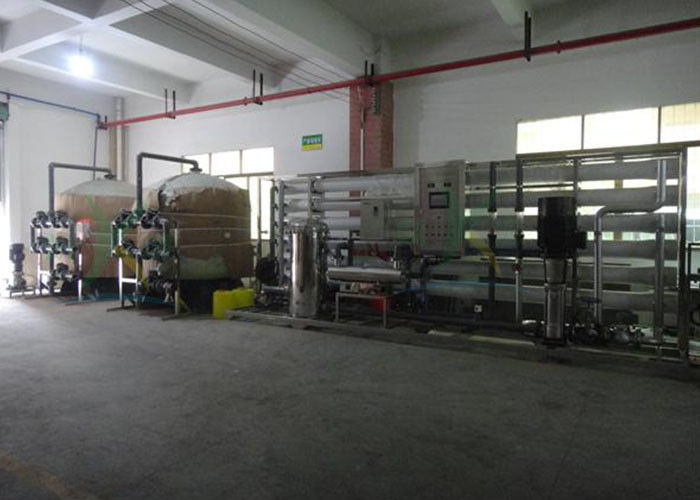

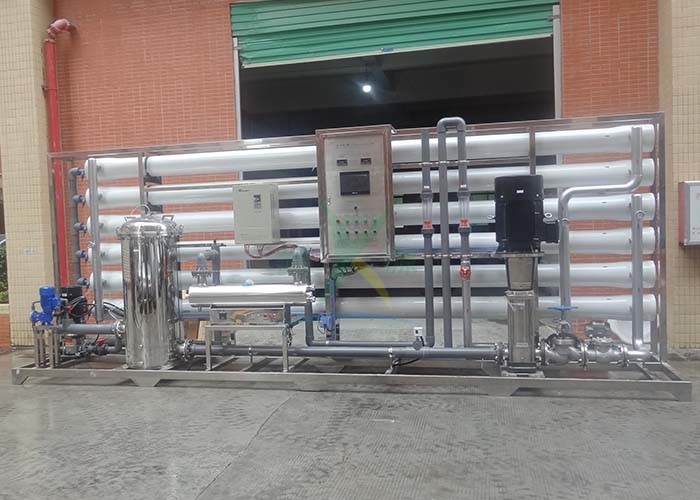

4 Stage Commercial RO Water System , RO Water Filter Plant With Cartridges
SHEMATIC DIAGRAM:
RO water purification system is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. RO reverse osmosis filtration is the key link of water purification, purification quality depends on the quality and technology of RO membrane filter filter. Our RO film is from the United States Dow, GE reverse osmosis membrane, far more than the industry standard.
Main Devices Configuration of RO Machine
RO Membrane: Hydranautics or Dow brand from USA, and Toray brand of Japan.
Raw water pump and High pressure pump: CNP brand of China and Grundfos Brand from Denmark are available.
Quality of treated water: Meets the drinking water standard of WHO (World Health Organization)
Utilization ratio of water: 50-75%
Running mode: Full automatic, flux and conductivity of water are displayed automatically.
External Operation Conditions of Reverse Osmosis Water Purifier
1) Feed water temperature: 5-35ºC
2) Electrical parameters: 380v, 50hz, 3 phases.
3) Dosing chemicals are provided by the user, including coagulator, HCL, NaOH, etc.
4) The building of equipment room is built by the user: Dimensions can be informed during design.
Treatment process:
| Stage.1 Quartz sand filter |
| The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health. |
| Stage.2 Activated carbon filter |
| Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants |
| Stage.3 5um PP cotton filter |
| Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree. |
| Stage.4 RO system(0.1 nm RO membrane) |
| The core equipment of water purification system is RO system,our RM system import from America, It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level. |
For more details, please do not hesitate to contact us.
