| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-500LPH |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Name: | 500LPH Water Treatment | Production Capacity: | 500liters Per Hour |
|---|---|---|---|
| Recovery Rate: | 50%-75% | Electrical Power: | 220/380V 50/60Hz |
| Tank Material: | FRP/ Stainless Steel/ Carbon Steel | Control Valve: | Automatic/ Manual |
| Pipe Fitting: | SUS304/ U-PVC | Warranty: | 1 Year |
| Highlight: | uf membrane water purifier,membrane filtration water treatment |
||

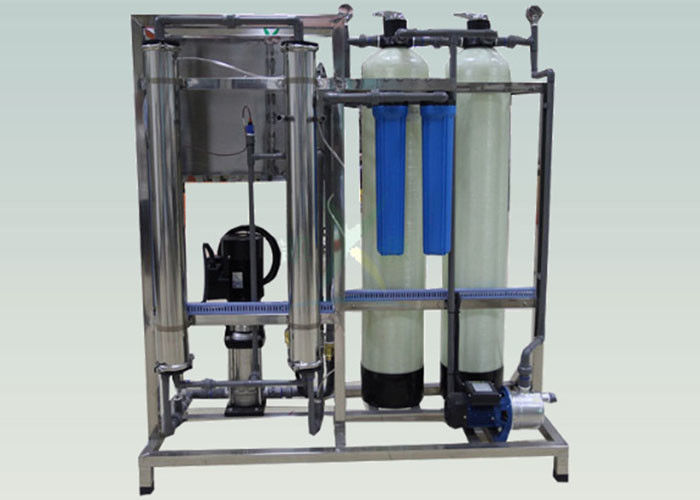

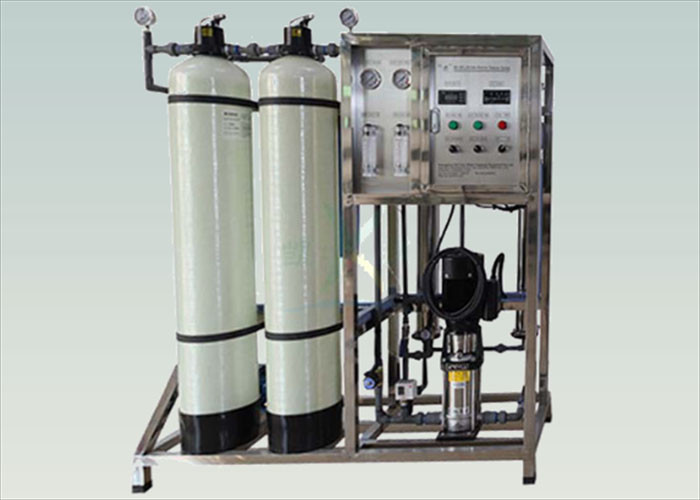

500 Liters Per Hour Ro Drinking Water Purification Dialysis Reverse Osmosis System For Water Treatment
1. Product Description / Ultrafitration Membrane System
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.
The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity<2 us/cm.
2. Product Details / Ultrafitration Membrane System
|
Capacity |
500L/H, we can do from 250L/H - 50,000L/H. |
||
|
Water recovery |
50-75%, big capacity machine can reach to 85% |
||
|
Source water |
city water, underground water, river water.... |
||
|
Product water |
ultra pure water |
|
Different Water TDS Compare and Usage |
||||
|
|
Bottle Water /Bag Water |
City Water |
Brackish Water |
Sea water |
|
TDS |
2-10ppm |
100-1000ppm |
2000-20000ppm |
20000-40000ppm |
|
Directly drinking |
✔ |
✔ |
✘ |
✘ |
|
cooking, domestic water , washing |
✔ |
✔ |
✘ |
✘ |
|
irrigation, industry, animal drinking |
✔ |
✔ |
✘ |
✘ |
3. Advantages / Ultrafitration Membrane System
1. Best stability of water quality
2. Constantly produce ultrapure water as per user requirements
3. Modular production, can achieve automatic control
4. No need acid and alkali regeneration, no pollution emissions
5. No need stop because of regeneration
6. No need regeneration equipment and chemical storage
7. Compact equipment, small size
8. Low operation and maintenance cost
9. Simple operation and low labor strength
4. Optional Components / Ultrafitration Membrane System
A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank
5. Product Processing / Ultrafitration Membrane System
|
Component parts |
12. Input water pressure |
|
1. Raw water pump |
13. Output water pressure |
|
2. Quartz sand filter |
14. Dense water flow |
|
3. Activated carbon filter |
15. Pure water flow |
|
4. Manual control valve |
16. Pure water conductivity monitor |
|
5. Security filter |
17. PC controller |
|
6. Inlet water pressure gauge |
18. Raw water pump control switch |
|
7. Outlet water pressure gauge |
19. High pressure pump control switch |
|
8. Inlet water solenoid valve |
20. Total power ON & OFF |
|
9. Low pressure protect switch |
21. Outlet water solenoid valve |
|
10. High pressure pump |
22. Stailess steel rack |
|
11. RO membrane |
23. U-PVC pipe |
