| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-10TPH |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| RO Membrane: | USA DOW | Production Capacity: | 10tons Per Hour |
|---|---|---|---|
| Electrical Power: | 220/380V 50/60Hz | Tank Material: | FRP/ Stainless Steel |
| Control Valve: | Automatic/ Manual | Pipe Fitting: | SUS304/ U-PVC |
| Warranty: | 1 Year | Feed Water TDS: | <2000mg/L |
| Desalination Rate: | >=97% | ||
| Highlight: | iron water treatment systems,iron removal water softener system |
||

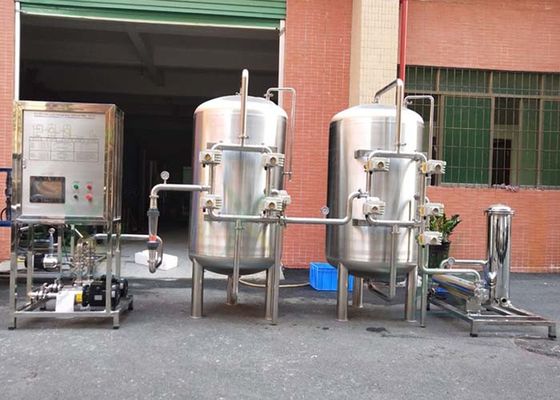

10000LPH iron removal Stainless Steel tank manganese sand filter for water treatment
Underground water with iron and manganese after treating by aeration, iron and manganese ions in the water starts to be oxidated, iron(Fe2+), manganese(Mn2+) exists in the underground water (well water),MnO2 in the manganese sand can catalyze the oxidation of Fe2+, Mn2+, to generate insoluble trivalency iron and tetravalent manganese, then use the back washing function of the manganese sand filter to get rid of iron and manganese and make the source water purified.
Filtration is the most traditional method of purification, is often used as pretreatment system of pure water system, industry and domestic water supply, many filtering medium can be used, reach the efficiency of removing colloid, particles, suspend matters, residual chlorine, odor, color and iron manganese.
Characteristic:
Power saving: the water can be supplied to the pipe network directly, no need to set up second stage water supply system, the equipment has backwash function, and no need to set up backwashing pump.
Water saving: This equipment adopts "plum blossom water distributor", which can shorten the distance between filter layer and water distribution pipe, and can save a lot of backwash water.
Save investment and floor space: the equipment is no need to set up clear water tank.
Save the filter material: This equipment water distribution is balance, the filter material does not have the dead angle, does not harden, prolongs the filter material service life. A strong oxidation chamber sets up inside the equipment, which can increase the saturation of air and water, speed up the oxidation, and have stronger applicability to the content of iron and manganese in raw water.
2. Product Details
kyro-10tph Ion exchange equipment
| 1. Capacity: 10T/H |
| 2. Rated power: 18.0KW/H |
| 3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase |
| 4. Desalting rate:>=97% |
| 5. Water recovery rate: 50-75% |
| 6. Security filter: 40 "× 5μm |
| 7. Activated carbon: 375kg |
| 8. Quartz sand: 1400kg |
More Products
Capacity
| Model | Capacity | Recovery Rate | Desalination | Output power | Membrane Brand | RO Rack Size (mm) |
| KYRO-250 | 250L/H | 50% | 97% | 1.5kw | USA-DOW | 1550*620*1670 |
| KYRO-500 | 500L/H | 50% | 97% | 1.5kw | USA-DOW | 1650*630*1800 |
| KYRO-750 | 750L/H | 50% | 97% | 2.5kw | USA-DOW | 1870*630*1850 |
| KYRO-1000 | 1000L/H | 50% | 97% | 2.5kw | USA-DOW | 1870*650*1850 |
| KYRO-1500 | 1500L/H | 50% | 97% | 3.0kw | USA-DOW | 2440*750*2000 |
| KYRO-2000 | 2000L/H | 50% | 97% | 3.5kw | USA-DOW | 2440*650*1750 |
| KYRO-3000 | 3000L/H | 50% | 97% | 4.0kw | USA-DOW | 2440*620*1850 |
| KYRO-4000 | 4000L/H | 50% | 97% | 5.0kw | USA-DOW | 2000*900*1800 |
| KYRO-5000 | 5000L/H | 50% | 97% | 7.5kw | USA-DOW | 2000*900*1800 |
| KYRO-6000 | 6000L/H | 60% | 97% | 9.5kw | USA-DOW | 3000*900*1800 |
| KYRO-8000 | 8000L/H | 60% | 97% | 13.5kw | USA-DOW | 3000*900*1800 |
| KYRO-9000 | 9000L/H | 60% | 97% | 14.0kw | USA-DOW | 3000*900*1800 |
| KYRO-10T | 10M3/H | 60% | 97% | 19.0kw | USA-DOW | 4000*900*1800 |
| KYRO-12T | 12M3/H | 60% | 97% | 19.5kw | USA-DOW | 4000*900*1800 |
| KYRO-15T | 15M3/H | 60% | 97% | 23kw | USA-DOW | 4000*900*1950 |
| KYRO-20T | 20M3/H | 60% | 97% | 28kw | USA-DOW | 5000*900*1950 |
| KYRO-30T | 30M3/H | 60% | 97% | 55kw | USA-DOW | 7000*900*1950 |
| KYRO-50T | 50M3/H | 75% | 97% | 58kw | USA-DOW | 7000*1500*2100 |
Component:
There are several kinds of consumables you need to replace regularly. (for 500LPH)
a. Quartz sand: replaced about every 15 months. 50kg/bag,100kg/set
b. Activated carbon: replaced about every 15 months. 25kg/bag, 25kg/set
c. Resin: replaced about every 15 months. 25L/bag, 50L/set
d. PP Filter cartridge: replaced about every 1 month. 2pcs/set
e. Ro membrane: replaced about every 2 year. 2pcs/set
We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.
Optional Components:
A. Regulating wheels
3.Product Processing
1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...
Application:
Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
