| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-500LPH |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| RO Membrane: | USA DOW | Production Capacity: | 500LPH |
|---|---|---|---|
| Recovery Rate: | 50% - 75% | Electrical Power: | 380V 50Hz 3Phase (Customize Available) |
| Tank Material: | Fiberglass / Stainless Steel / Carbon Steel | Control Valve: | Automatic / Manual |
| Pipe Fitting: | SUS304 / SUS316L / U-PVC | Warranty: | 1 Year |
| Highlight: | ion exchange water purifier,ion exchange resin water filter |
||

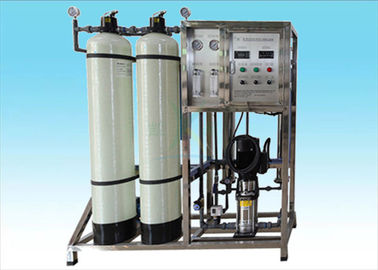

Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane.
It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.
The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity<2 us/cm.
|
Commodity |
Remarks |
|
Raw water pump |
SS316L / FRP |
|
Sand filter |
Auto Valve / FRP |
|
Carbon filter |
Auto Valve / FRP |
|
5μm Cartridge filter |
20″×5μm PP filters / PVC |
|
High pressure pump |
SS316L |
|
Reverse osmosis water production: 0.1m3/h, desalination rate:96~99%, System water utilization: ≥ 60% |
|
|
Membrane housing |
Make to order |
|
Membrane element 4040 |
2pcs |
|
Stainless steel frame |
Stainless steel 304 |
|
Water valve |
1 Set |
|
Pipe fittings, valves |
SS316L |
|
Electronic control system |
PC programmable automatic control, France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller, time controller. |
|
Filter Media |
Quartz sand / Activated carbon |
|
Pressure gauges |
1 Set |
|
1Flowmeter Panel type |
1 Set |
|
UV Sterilizer |
SS316L |
|
Sterilization System |
1 Set |
|
MakePure water tank |
1PC |
5. Product Processing / Ion Exchange Water Treatment
|
1. Raw water pump |
2. Quartz sand filter |
3. Activated carbon filter |
|
4. Manual control valve |
5. Security filter |
6. Inlet water pressure gauge |
|
7. Outlet water pressure gauge |
8. Inlet water solenoid valve |
9. Low pressure protect switch |
|
10. High pressure pump |
11. RO membrane |
12. Input water pressure |
|
13. Output water pressure |
14. Dense water flow |
15. Pure water flow |
|
16. Pure water conductivity monitor |
17. PC controller |
18. Raw water pump control switch |
|
19. High pressure pump control switch |
20. Total power ON & OFF |
21. Outlet water solenoid valve |
|
22. Stailess steel rack |
23. U-PVC pipe |
Parts details |
