| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-1000LPH |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Items: | 1000L/H Salty Brackish Water Reverse Osmosis Water Treatment | Production Capacity: | 1000liters Per Hour |
|---|---|---|---|
| Recovery Rate: | 40% | Electrical Power: | 220V / 380V 50Hz / 60Hz |
| Tank Material: | FRP | Control Valve: | Automatic / Manual |
| Pipe Fitting: | SUS304 / U-PVC | Warranty: | 1 Year |
| Size: | 1870*650*1850MM | Feed Water TDS: | ≤20000mg/L |
| Highlight: | brackish water treatment,brackish water ro system |
||

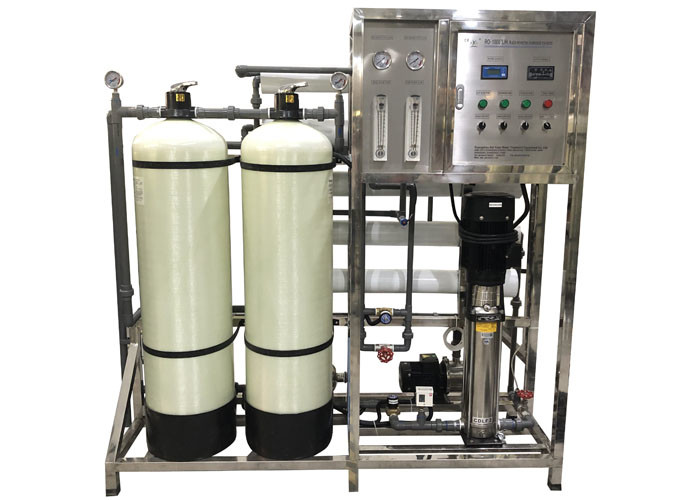

1000LPH Brackish Water Reverse Osmosis Water Treatment System High Salty Desalination Filter
Product Description
The brackish water system can be used for the area where underground water in high salty and near sea. (Brackish feed water TDS between 2000ppm and 20000ppm. Capacity range 250L/H - 300m3/H.
| Raw water→ | Bottle ,Bag water | City water | Brackish water | Sea water |
| Usage↓ | ||||
| TDS range | 2-10PPM | 100-1000PPM | 2000-20000PPM | 20000-40000PPM |
| Direct Drinking | Yes | Yes / No | NO | NO |
| Cooking, human consumption, washing | Yes | Yes | NO | NO |
| Irrigation, industry, animal drinking | Yes | Yes | NO | NO |
Brackish water from the raw water pump into the quartz sand (multi-media filter) and activated carbon filter. Filtered water after water quality reduction, PH adjustment and scale inhibitor added after the access to the precision and security filter, filtered low pressure brackish water all the way into the high-pressure pump pressure, the other way into the pressure exchange energy recovery device, after pressurized pump pressurized with high pressure pump into the reverse osmosis membrane reactor system. High-pressure brackish water in the membrane reactor under the treatment of the formation of fresh water through the membrane after water quality adjustment into the fresh water tank storage. The rest of the high pressure concentrated water enters the pressure exchange energy recovery unit to recover the energy after discharge.
Product Process
Raw water ->Raw water tank(buyer supply) -> Raw water pump -> Quartz sand filter ->Active carbon filter->Antiscale dosing system->Security filter-> High pressure pump -> RO equipment->Pure water tank(buyer supply)->Water supply point
Some parts function:
| 1. Raw water pump: provide needed pressure for every pre-treatment filter; |
| 2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^ |
| 3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances; |
| 4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm; |
| 5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water; |
| 6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. |
| 7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc... |
Application
Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
Any interesting, just sent inquiry to us^^
