| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-4000LPH |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Name: | Ro Water Purifier Machine | Production Capacity: | 4000liters Per Hour |
|---|---|---|---|
| Recovery Rate: | 50% - 75% | Application: | Filtration |
| Tank Material: | FRP/ Stainless Steel/ Carbon Steel | Other Name: | Iron Removal Water System |
| Pipe Fitting: | SUS304/ U-PVC | Warranty: | 1 Year |
| Highlight: | iron water treatment systems,iron removal water softener system |
||

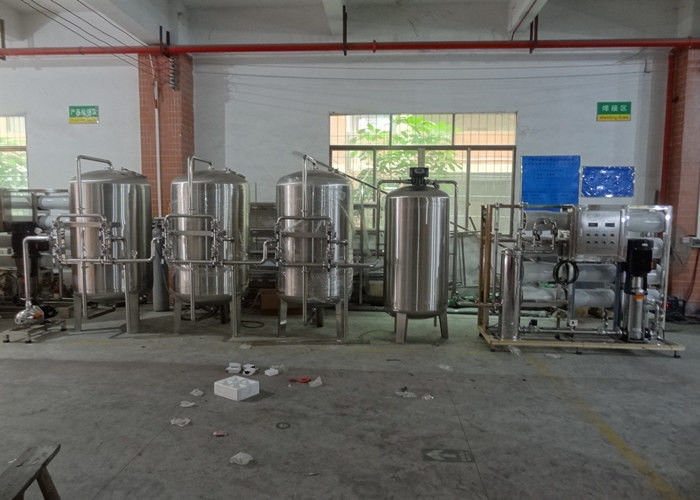

SUS 304 Filtration RO Water Purifier Machine Iron And Manganese Removal filter System
Ro Water Purifier MachineDescription
Ro Water Purifier Machine is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won't polluted environment.
Underground water with iron and manganese after treating by aeration, iron and manganese ions in the water starts to be oxidated, iron(Fe2+), manganese(Mn2+) exists in the underground water (well water),MnO2 in the manganese sand can catalyze the oxidation of Fe2+, Mn2+, to generate insoluble trivalency iron and tetravalent manganese, then use the back washing function of the manganese sand filter to get rid of iron and manganese and make the source water purified.
Filtration is the most traditional method of purification, is often used as pretreatment system of pure water system, industry and domestic water supply, many filtering medium can be used, reach the efficiency of removing colloid, particles, suspend matters, residual chlorine, odor, color and iron manganese.
Ro Water Purifier Machine Details
|
Capacity |
4000lph |
Water recovery |
more than 50% |
|
Function |
Producing Fresh Water |
Type |
Pure Water Treatment System |
|
Application |
Filtration |
Material |
FRP+PVC/stainless teel |
|
Usage |
Pure Water Process |
Voltage |
110V / 220V / 380V |
|
Desalting rate |
more than 97% |
Membrane |
USA Filmtec DOW |
Ro Water Purifier Machine Processing
Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter#1→activated carbon filter#2→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point
|
First stage pretreatment.(Sand filter) |
|
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health. |
|
Second stage pretreatment (activated carbon filter#1) |
|
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. |
| Third stage(activated carbon filter#2) |
| Underground water with iron and manganese after treating by aeration, iron and manganese ions in the water starts to be oxidated, iron(Fe2+), manganese(Mn2+) exists in the underground water (well water),MnO2 in the manganese sand can catalyze the oxidation of Fe2+, Mn2+, to generate insoluble trivalency iron and tetravalent manganese, then use the back washing function of the manganese sand filter to get rid of iron and manganese and make the source water purified. |
|
Fourth stage pretreatment (Resin softener) |
|
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red. |
|
Fifth stage pretreatment (Micron filter) |
|
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree. |
|
RO system |
|
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level. |
Ro Water Purifier Machine Application
Ro Water Purifier Machine Details
