| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-500LPH |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Name: | 500lph Ultrapure Water System | Production Capacity: | 500LPH |
|---|---|---|---|
| Application: | Hospital Dialysis Laboratory | Electrical Power: | 110V / 220V / 380V |
| Tank Material: | FRP | Control Valve: | Automatic |
| Pipe Fitting: | SUS304/ U-PVC | Output TDS: | <5PPM / 10uS/cm |
| Highlight: | ultrapure water equipment,pure and clear water filter system |
||

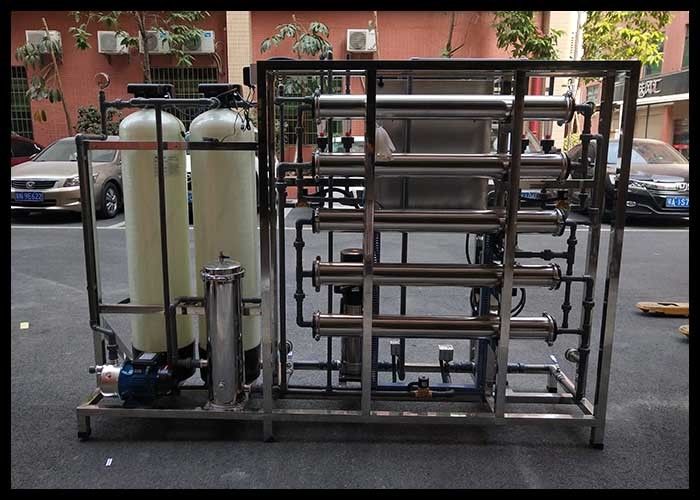

500lph Ultrapure Water System For Hospital Dialysis Laboratory 5mg/L 10uS/Cm Output
|
Our main product is RO system water purifier machine what we can do is to help changing such as seawater, brackish water,underground water and tap water atc...into domestic water, irrigation, direct drinking or bottle drinking(pure/mineral/alkaline water), industrial water: boiler water, hospital usages, beverage usages atc... |
|
This water treatment system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards. |
Process
Untreated water feed pump →Quartz sand filtration→ Active carbon filtration → Security filter → 1st stage high pressure pump →1st stage RO system→2nd stage high pressure pump→2nd stage RO system→UV sterilizer→output supply point
Main parts function
|
1.Raw water pump: provide needed pressure for every pre-treatment filter; |
|
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned; |
|
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances; |
|
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm; |
|
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water; |
|
6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. |
Advantages:
| 1.Can run and produce water continuously, highly automatic |
| 2.No need chemical to regeneration,easy operation and maintainance |
| 3.RO system uses imported USA DOW membrane |
| 4.Automatic switch on when lack of water,and switch off when no water or full of water |
| 5.RO membrane auto wash and reduce the pollution speed. |
| 6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops. |
|
7.Production water conductivity meter monitors water quality online continuously |
| 8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing. |
Wooden Packing

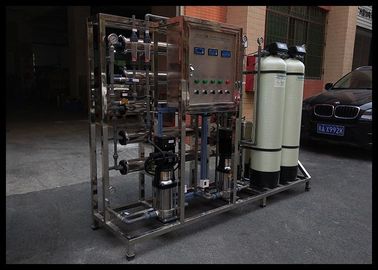

Control panel
Thank you so much for your value time. Any questions please click "contact now" send us inquiry !
We will reply you within 24 hours. Tel/ whatsApp/ wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
