98% 3m3 Reverse Osmosis Desalination System With U PVC Pipe

Reverse Osmosis Sea Water Purification System , Seawater Desalination Plant


Outside technology parameter
Flow rate	3m3	Recovery rate	≧45%
Electricity	Ac 440v/3ph/60hz/50HZ	Power(KW)	9KW
Input water TDS	30000ppm	Output water TDS	≦600ppm
Pressure	1000psi	Temperature	5-45℃
Input water turbidity	≦1NTU	Input water PH	Medium
demarcation of the design	within 1 meter from the raw water pump input water to pure water tank output

Seawater desalination has proven to be a reliable and economically sustainable water resource since the second half of the 20th Century. A number of well proven technologies already exist, with advantages and disadvantages making each of them more suitable in specific sites. Moreover, able to minimize the environmental impact that desalination processes can create due to their intense energy consumptions.

Seawater coming into the plant goes through a rigorous pretreatment process then freshwater is separated from the seawater using reverse osmosis. The end product is high-quality drinking water that supplies up to 10 percent of the region’s needs.

Reverse Osmosis Ro System Water Features

High-precision filter, the pore size is nanometer, the best water quality

Automatic switching of manual/electric control system;

With self-check function, automatic boiling water system without water point, water full stop, no pressure protection and other safety devices;

With open RO membrane automatic cleaning and automatic double cleaning of the water tank, it can extend the service life of the RO membrane;

With online water quality monitoring (conductivity display), flow and pressure online display functions;

Equipment integration, simple installation, simple operation, no special responsibilities;

Equipment failure has an automatic alarm function;

High water production, high desalination rate and long service life;

Core components (pumps, reverse osmosis membranes, electronic control systems, etc.) imported/domestic joint venture brands;

The equipment rack is made of stainless steel, the low-pressure pipe is made of UPVC, and the high-pressure pipe is made of SUS304 stainless steel.

Sea Water Purification System Performance:

*Main part (membrane) of reverse osmosis system is imported from USA.
*Auto stop when no water and full water.
*Auto controller, RO membrane auto flush to protect membrane.
*Auto start when pure water tank have no water.
*Low pressure protection switch to protect high pressure pump when there is no raw water.
*High efficient and low noise high pressure pump.
*Product water conductivity meter to monitor product water quality all the time.

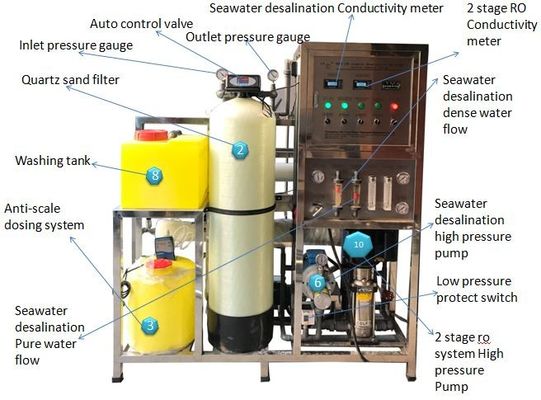

Sea Water Purification System Details:

1. Pretreatment system generally includes the original water pump, dosing system, quartz sand filter, activated carbon filter, precision filter ,and so on. Its main function is to reduce the raw water pollution index and residual chlorine and other impurities, to achieve the reverse osmosis water requirements.Pretreatment equipment configuration of the system should according to the specific situation of the raw water.

2. Reverse osmosis unit includes multistage high-pressure pump, reverse osmosis membrane element, membrane shell (pressure vessel), support, etc.

Its main role is to remove the impurities in the water, the water meets the requirement.

3. Post-processing system is in the case of reverse osmosis can not meet the requirement of the water increases the configuration. Mainly includes the Yin bed, sun , sterilization, ultrafiltration of the mixed bed, EDI, etc. One or more of these equipment. Post-processing system can reverse osmosis water.Better improve water quality, to meet the use requirement.

4. Cleaning system cleaning tank, cleaning pump, main precision of filter. When the pollution of water reverse osmosis system Index cannot meet the requirements, the need for cleaning of reverse osmosis recovery effect.

5. Electrical control system is used to control the normal operation of the reverse osmosis system. Include instrument panel, control panel, all kinds of electricity.Protection, electrical control cabinet and so on.
