| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KY-bottle blower |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-30working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >50sets/month |
| Name: | Plastic PET Bottle Blower Blowing Machine | Production Capacity: | 220ml~3L |
|---|---|---|---|
| Maximum Mold Thickness: | 200mm | Maximum Bottle Meter: | 125mm |
| Mold Opening Stroke: | 165mm | Maximum Bottle Height: | 350mm |
| Voltage: | 380v/ 50-60Hz | Power: | 12KW |
| Highlight: | 1.5L Bottle Blowing Machine,2 Cavity Bottle Blowing Machine,Semi Automatic Bottle Making Preforms Heater |
||

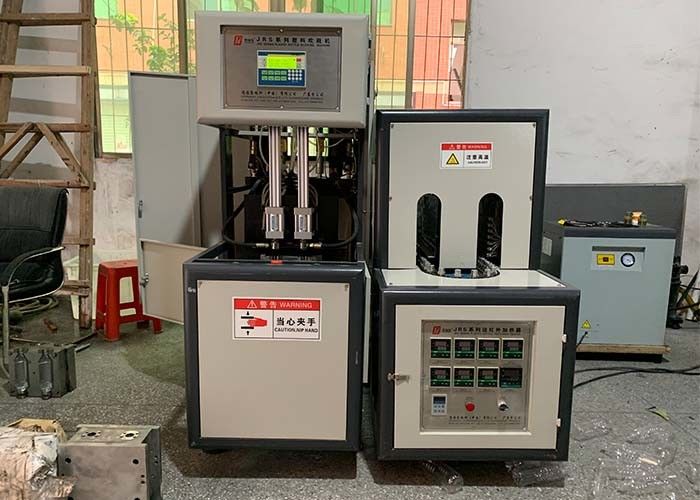

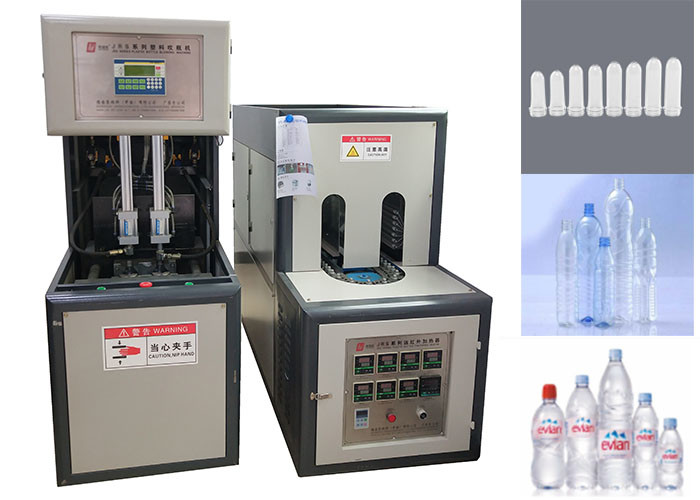

Semi-automatic bottle blowing machine the hollow plastic container is widely used in beverage, medicine, cosmetic, food and chemical industry because of its low cost and high safety. It has attracted more manufacturers to choose plastic container instead of glass container.
| Bottle blowing machine | ||
| Parameter | KYX-2L/S2 | KYX-3L/S2 |
| Container Volume | 2L | 3L |
| Theory Yield | 1350 | 1200 |
| Mold Opening Stroke | 145mm | 165mm |
| Mold Thickness | 220mm | 220mm |
| Bottle Height | 360mm | 410mm |
| Bottle Diameter | 105mm | 125mm |
| Equipment Size | 1.6*0.7*1.7m | 1.6*0.7*1.7m |
| Bottle preforms heater | ||
| Supply Voltage | 3ph 380V/ 50-60Hz | 3ph 380V/ 50-60Hz |
| Heating Power | 12KW | 12KW |
| Pet Quality | 72pcs | 72pcs |
| Equipment Size | 1.8*0.6*1.5m | 1.8*0.6*1.5m |
| Model | Unit 1.2/30 |
| Power | 15KW |
| Rated working pressure | 3.0Mpa |
| Size | 1580*850*1150MM |
| Weight | 600KG |
| The air compressor we provide to our customers is dedicated to bottle blowing. Whether the gloss, transparency and edges and corners of the bottle after being blown out are directly and closely related to the air compressor. The pistons in cheap air compressors are of poor quality and are easily damaged, and the pistons have a short service life, resulting in insufficient pumping capacity of the air compressor, result in more defective bottles. | |
| Model | Unit 1.5/30 |
| Accuracy | μm |
| Rated gas capacity | 1.5m³/min |
| Rated working pressure | 3.0Mpa |

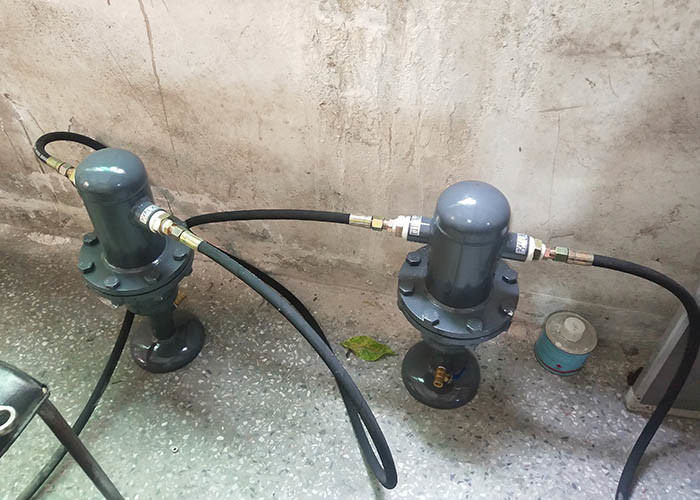

| The filter is mainly used to filter water, impurities, oily residue, etc. in the air and high-pressure gas. The treated gas enters the bottle to ensure that the bottle has no peculiar smell and gloss. The filter we provide to our customers is mainly composed of a filter element and a filter screen, which makes the oil and water separated cleanly. After primary and secondary treatment, the quality of the bottle is ensured. | |
| Model | Unit 1.5/30 |
| Cooling method | Air-cooled |
| Intake air temperature | ºC |
| Rated gas capacity | 1.5m³/min |
| Rated working pressure | 3.0Mpa |

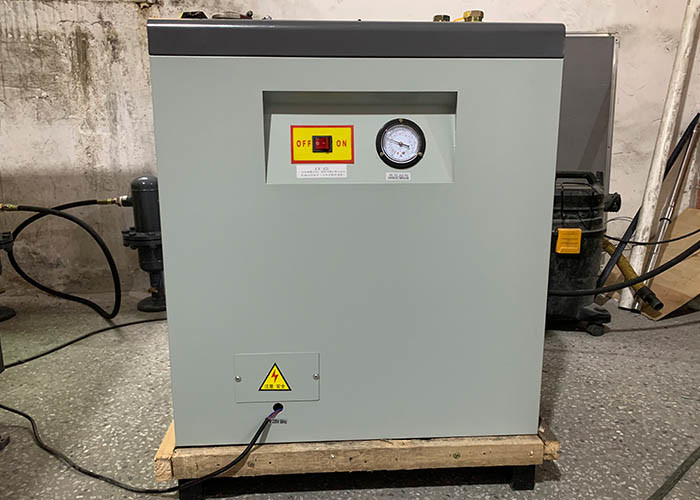

| The function of the cold dryer is to process high-pressure gas and moisture in the air to quickly dry the bottle wall and improve production efficiency. Our cold dryer is equipped with precision filter processing, so that the blown out bottle is bright and the cooling speed is fast | |
Before blowing, client need to ready the bottle pet firstly as below, difference bottle capacity used difference model, and its customized, if you need to do your own brand, pls sent us your design in advance^^. Range: 220-3000ml bottle/ Bottle height is 350mm/ Bottle diameter is 125mm
Whole completely bottle line: water treatment+bottle blowing/ filling/ packing↓
